Crab hoist crane

Asia Hoist Cranes | Kyungdong Industrial Co., Ltd.

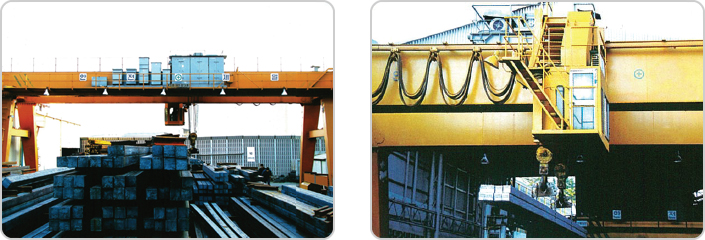

Crab hoist crane
Crab hoist crane
Crab hoist crane


2.TABLE-2

type

capacity
(ton)		 Span
(m)		 Lift
(m)		 Main
Hoist		 Auxiliary
Hoist		 Traver
-sing		 Travell
-ing

Runway Rail
(Minmum)
(kg/m)
Main
Hoist		 Auxiliary
Hoist		 Speed
*Motor (m/min) *(kw)
 Speed
*Motor
(m/min)
*(kw)
Speed
*Motor
(m/min) *(kw)
Speed
*Motor
(m/min) *(kw)

Medium
Speed
type

 3 - 6-14 12 13*11 - 40*2.2 110*7.5 22
15-24 90*7.5
5 - 6-14 12 12*15 - 40*2.2 110*11 22
15-24 90*11
7.5 - 8-14 12 10*22 - 40*3.7 110*15 22
15-24 90*15
10 - 8-14 12 8*22 - 40*3.7 100*22 30
15-14 80*22
15 Nil or 3 8-14 12 8*30 13*11 40*5.5 100*15 30
15-24 80*15
20 Nil or 5 10-16 12 6*30 12*15 35*5.5 100*22 30
17-26 80*22
25 5 10-16 12 6*37 12*15 35*7.5 100*30 37
17-26 80*30
30 5 10-16 12 5*37 12*15 35*7.5 100*30 37
17-26 80*30
40 10 12-18 12 5*50 8*22 35*11 100*37 50
17-26 80*37
50 10 12-18 12 4*50 8*22 30*11 90*37 50
19-26 70*37
60 10 12-26 12 3.2*50 8*22 25*11 70*37 73
80 20 12-26 12 2.4*50 6*30 25*15 70*37 73
100 20 12-26 12 2.3*50 6*30 20*15 70*37 73


2.TABLE-2

Type

capacity
(ton)

Span
(m)

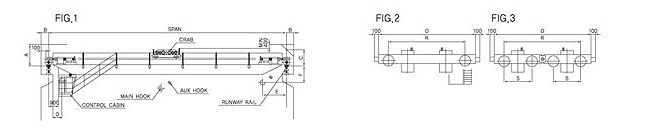

Construction Gauge
(mm)

Limit of main hook
traverse nearest to
the center of runway
rails limit of lift of
hook below the top of
runway rail(mm)

End
Carriage
Reference
(mm)

Total
number
of
Wheels
(Refer
-ence)

Main
Hoist

Auxiliary
Hoist

 Vertical
distance
from the top
of rail to the
ceiling (A)		 Distance
from the
center of
rail to
side wall
(B)		 Vertical
distance
from the
top of rail
to the
construction
gauge at the
center of rail
(C)		 Left
hand
side
(cabin
side)
(D)		 Right
hand
side
(E)		 Lift of
hook
below the
top
of rail
(F)		 Length

(Q)		 Wheel
Base
(Q) (Q)

Medium
Speed
type

 3 - 6-14 2400 350 1200 1000 1000 200 4050 3250 - 4
15-24 2500 1300
5 - 6-14 2400 350 1400 1100 1100 300 4400 3500 - 4
15-24 2500 1450
7.5 - 8-14 2400 350 1550 1200 1200 400 4400
4900		 3500
4000		 - 4
15-24 2500 2500
10 - 8-14 2500 350 2500 1300 1300 500 4900
5400		 4000
4500		 - 4
15-14 2600 2600
15 Nil or3 8-14 2600 370 2600 1500 1500
(1600)		 700 6000 5000 - 4
15-24 2700 2700
20 Nil or5 10-16 2700 400 2700 1800 1800
(1900)		 800 6000 5000 - 4
17-26 2800 2800
25 5 10-16 2800 400 2800 1900 2000 900 6350 5250 - 4
17-26 2900 2900
30 5 10-16 2900 400 2900 2000 2100 1000 6700 5500 - 4
17-26 3000 3000
40 10 10-16 3100 400 3100 2100 2200 1100 6700 5500 - 4
17-26 3200 3200
50 10 12-18 3300 400 3300 2200 2300 1200 7200 6000 - 4
(73kg
/mrails)
8(50kg
/mrails)
19-26 3400 380 3400
60 10 12-26 3500 380 3500 2300 2400 1300 6000 5000 　 8
80 20 12-26 3700 450 3700 2500 2600 1400 6500 5500 1200 8
100 30 12-26 3900 450 3900 2800 2800 1500 7200 6000 1300 8
